Filter Mat
2021년 06월 15일 2022-09-16 10:40Filter Mat
It is a company that rewards customers' trust with
excellent quality through continuous research.
It is a company that rewards
customers' trust with
excellent quality through
continuous research.
IAN FILTERM MAT
Filter Mat(Non-woven fabric)
IAN Filter Mat
- permanent durability – excellent FILTER function in soil layer
- Excellent drainage and filtration
- Good flexibility and integration
- More cost-efficient than the natural filter of Jane sane or gravel
- No deformation

Types of Filter Mat

01
high-strength non-woven fabric
- Combined with the three-dimensional structure by Needle-Punching, it is a product that surpasses the world level in all standards such as tensile strength, tensile believer, effective opening size (AOS), horizontal drainage capacity.
- Existing short-fiber non-woven fabrics used in Korea have not achieved satisfactory results in tensile elongation, but our IFP and FILTERMMAT products have satisfactory results even if they are less than 50% tensile elongation.
- Existing short-fiber non-woven fabrics used in Korea have not achieved satisfactory results in tensile elongation, but our IFP and FILTERMMAT products have satisfactory results even if they are less than 50% tensile elongation.

02
Regular non-woven fabric
- It is a product produced by Needle-Punching and is commonly used in Korea.
- Compared to IFP and FILTERMMAT, the strength is significantly lower than the same weight.
- It can be used to prevent the inflow of fine-grained sand into perforated pipes and drainage gravel layers.
- It can be used to prevent the inflow of fine-grained sand into perforated pipes and drainage gravel layers.
Use of Filter Mat

- Prevent erosion of coastal slopes
- Prevention of inflow of granular soil into perforated pipes and drainage pebbles
- Bursting function in landfill, artificial lakes.
- Drain buffer in tunnels
- Extend life, reduce maintenance costs, and promote stability in the road and rail sectors
- Preventing different strata from being mixed up during construction of roads, railways, complexes, etc.
- Improving soft ground eliminates the need to install a separate drainage layer, which can be economically constructed and can be used extensively as an alternative to natural materials.
01
Prevent erosion of coastal slopes
02
Prevention of inflow of granular soil into perforated pipes and drainage pebbles
03
Bursting function in landfill, artificial lakes.
04
Drain buffer in tunnels
05
Extend life, reduce maintenance costs, and promote stability in the road and rail sectors
06
Preventing different strata from being mixed up during construction of roads, railways, complexes, etc.
07
Improving soft ground eliminates the need to install a separate drainage layer, which can be economically constructed and can be used extensively as an alternative to natural materials.

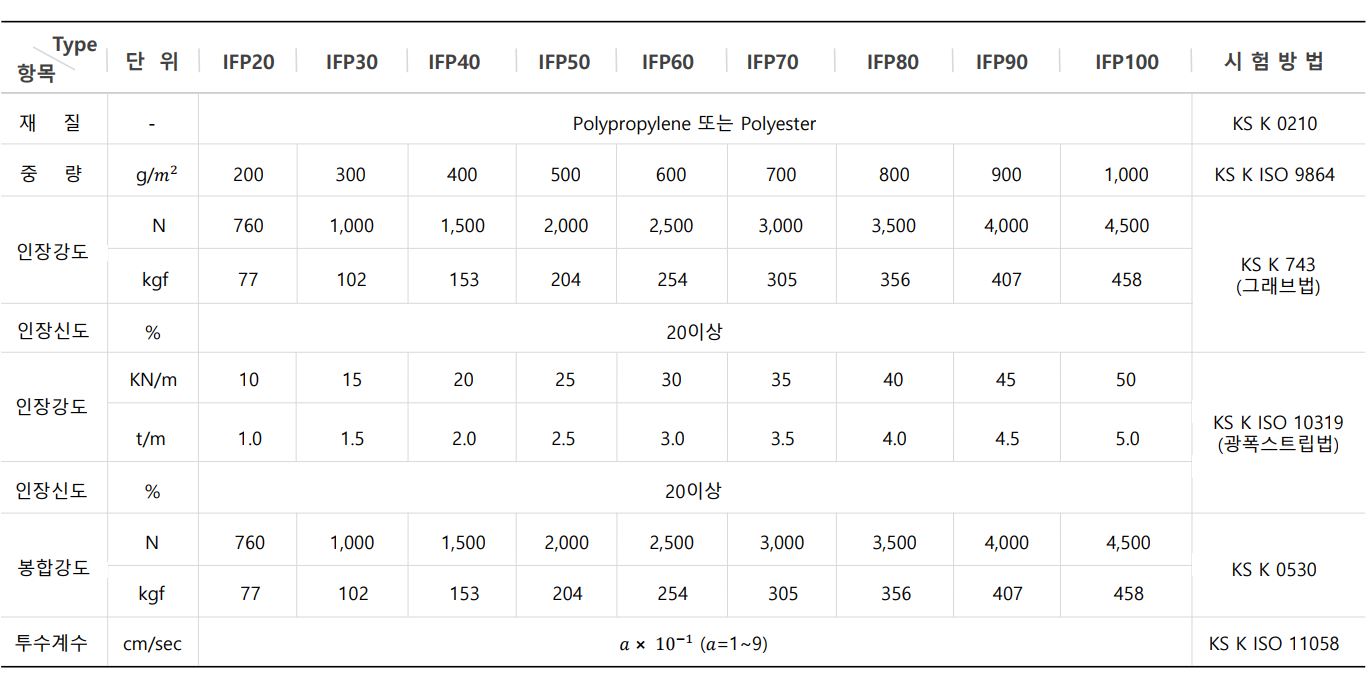

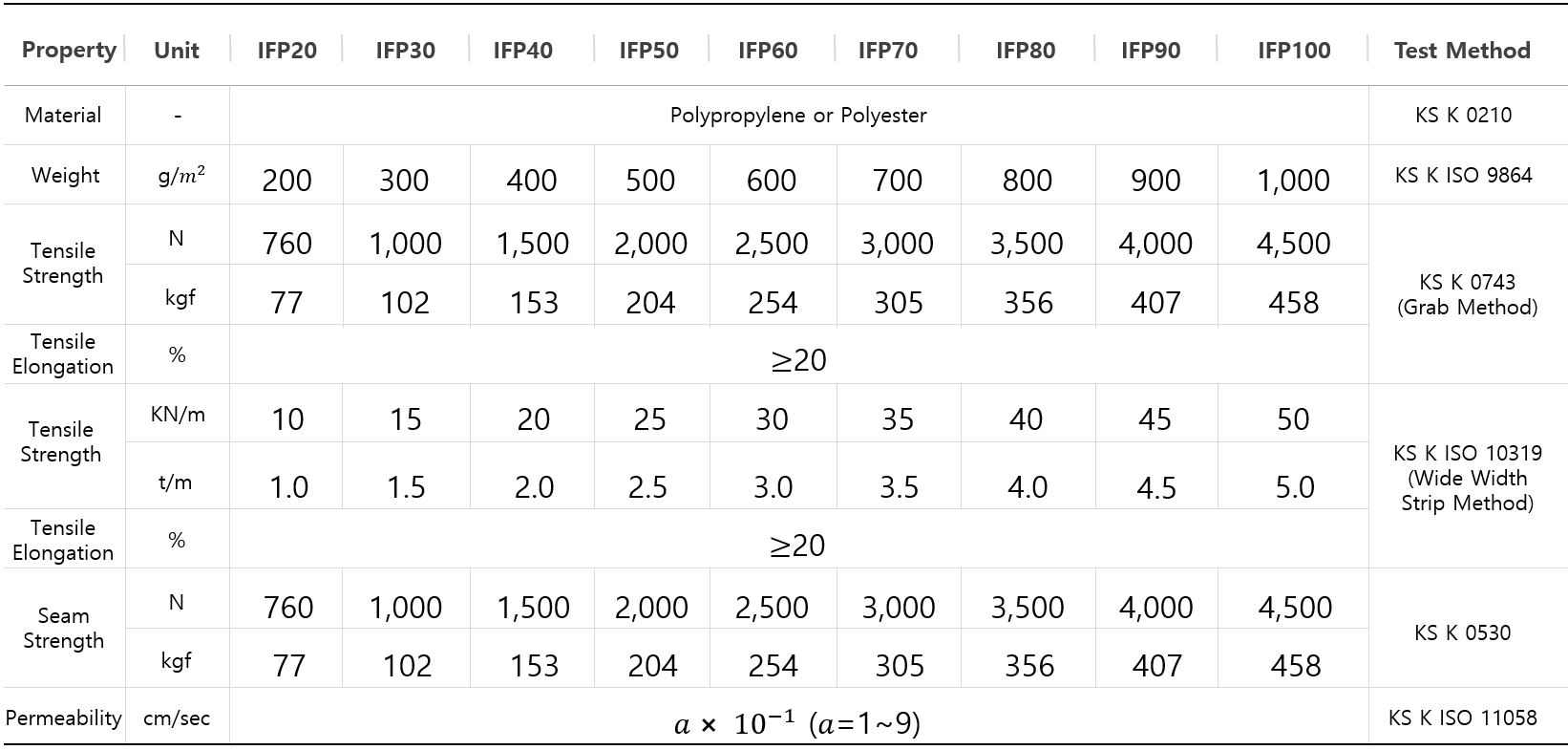

Filter Mat Property Chart
High-strength non-woven fabric

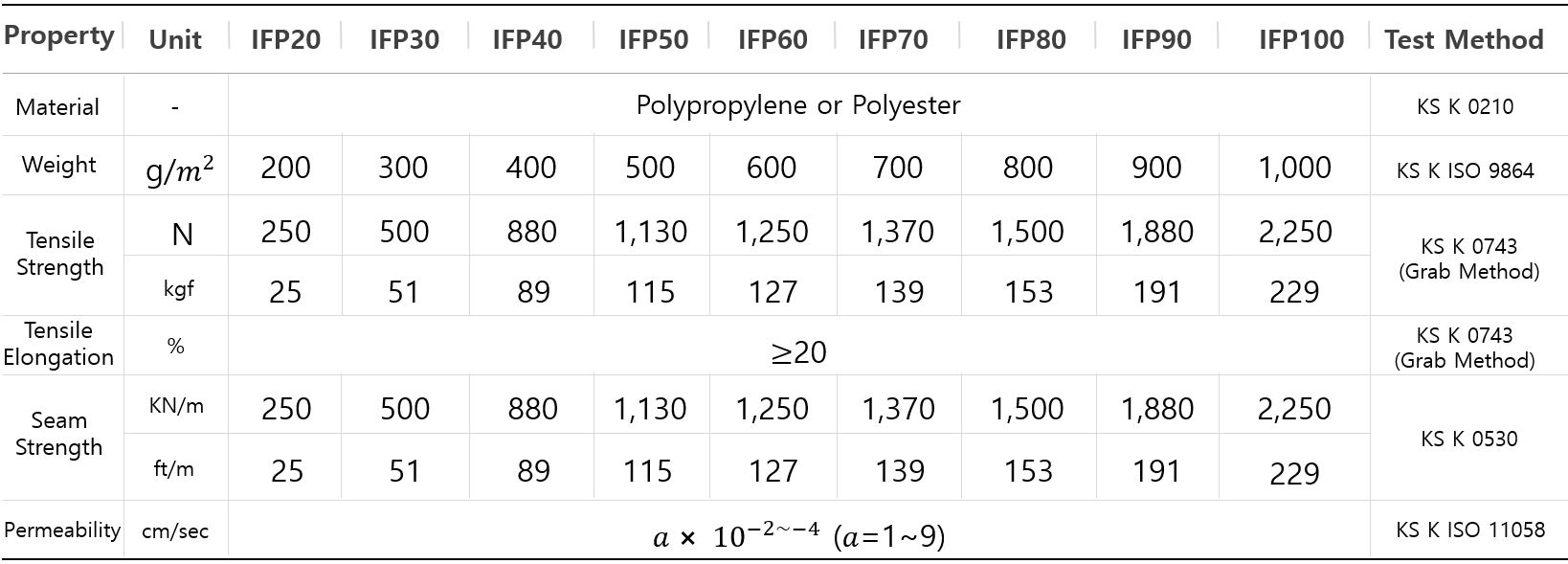

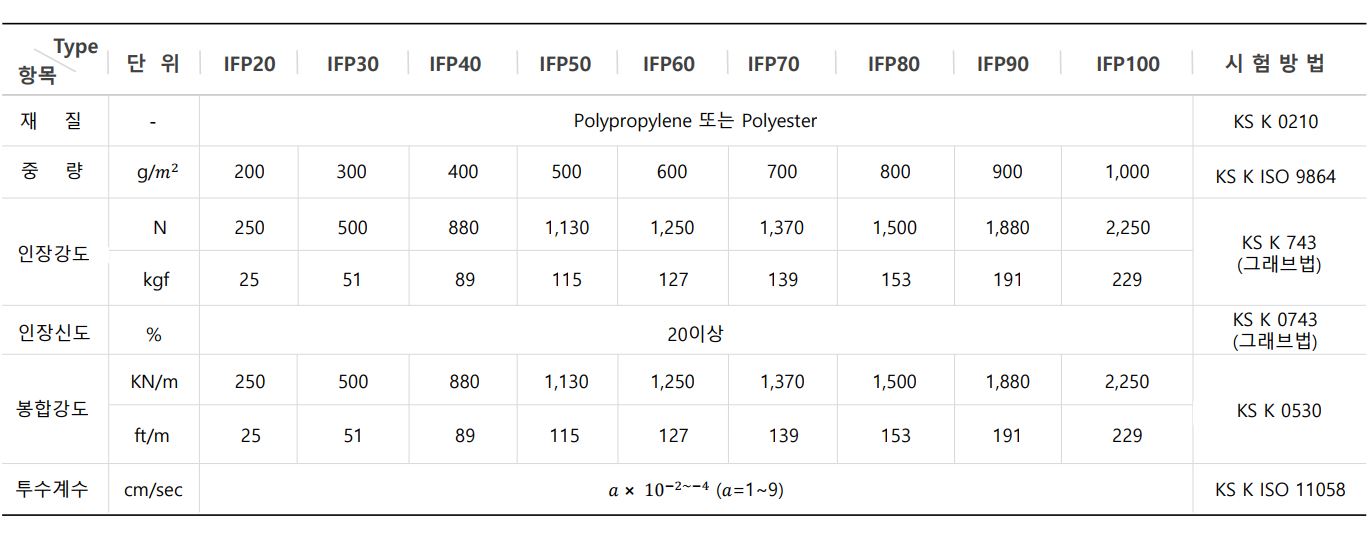

Filter Mat Property Chart
Regular non-woven fabric
