IAN GRID

GRID

IAN GRID

  • IAN GRID is a Net-type product coated with Polyester fabric with high-strength, low-elongation properties and is a geotextile with a grid air gap of around 10mm to 50mm.
  • IAN GRID serves as a structure that joins layers of filled soil above and below the GRID through a grid air gap within the product. In addition, the durable GRID with high elasticity and high strength (excellent Creep performance) characteristics evenly distributes and supports loads on the ground and soil layers to prevent the collapse of structures due to stress concentration.
GRID Products
2021 그리드
01
IAN GRID IG 60/30
지오그리드 1
02
IAN GRID IG 150/30
Features of GEOGRID

IAN GRID serves as a structure that joins layers of filled soil above and below the GRID through a grid air gap within the product. In addition, the durable GRID with high elasticity and high strength (excellent Creep performance) characteristics evenly distributes and supports loads on the ground and soil layers to prevent the collapse of structures due to stress concentration.

Purpose of GEOGRID

01

It is used for reinforced earth retaining wall construction, slope reinforcement, various embankment construction, ground stabilization of roads, railways, runways, and asphalt pavement reinforcement. In particular, it has proven excellent performance and economic feasibility in soft soil construction, and recently, the use and demand have been expanding worldwide.

02

When the slope is gently constructed to ensure stability, the site is wasted. Also, the construction cost required for concrete retaining wall construction is high, and the problem of cramped and monotonous appearance and environmental destruction is raised. In addition, expensive aggregates and fillers may be used to improve the performance of the ground during road construction on soft soil. GRID can be used as an effective material to reinforce the structure of the embankment layer in such a construction environment.

Efficiency of GEOGRID

01

GRID has a strong tensile strength using high-strength polyesters of excellent material, which strengthens the support of the ground, prevents inequality subsidence, and prevents shear destruction and sliding during retaining wall construction.

02

GRID Retaining Wall GRID saves paper usage as it is to be used for various retaining walls. It is economical and easy to construct and spread as it is a lightweight high-strength product.

03

GRID's soft soil GRID is made with the same strength in both directions to ensure equipment operability when improving soft soil on dredged ground, and it is economical as it is easier to construct soft soil complexes and upper floors of soft structures.

Coverage of GEOGRID
01. Application to reinforced earth retaining walls
01
IAN GRID IG150/30 Products
02
IAN GRID laying on reinforced earth retaining wall
03
Construction completed
02. Reinforcement application of soft ground
01
IAN GRID IG150/150 Products
02
IAN GRID laying on soft soil for road construction
03
Construction Completed

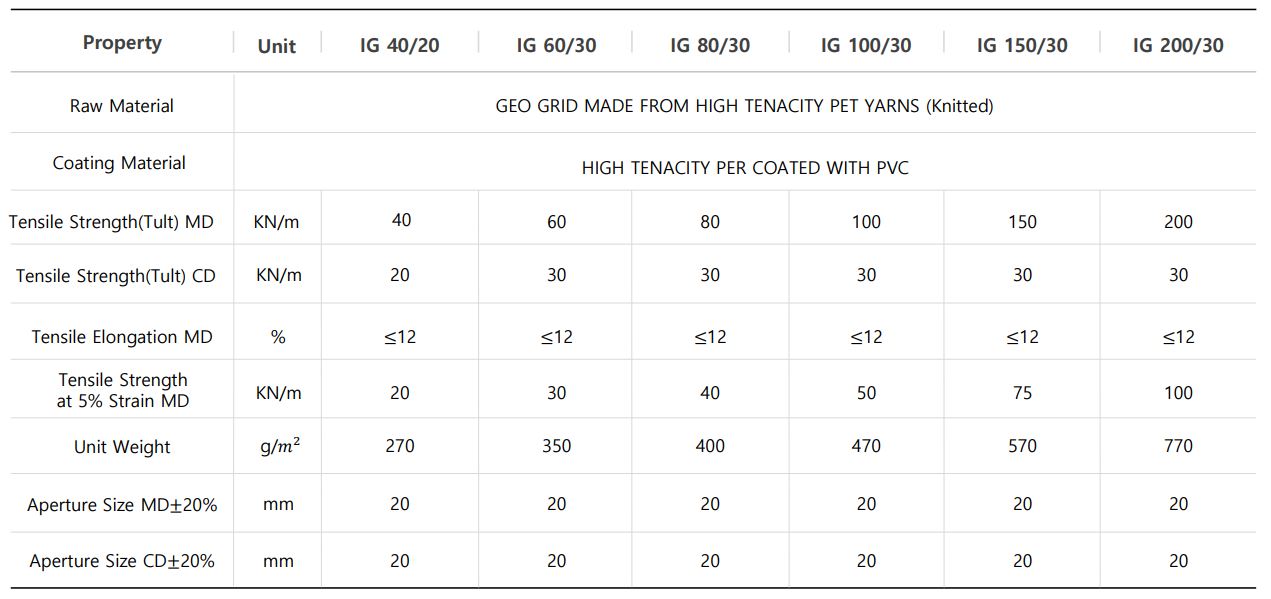

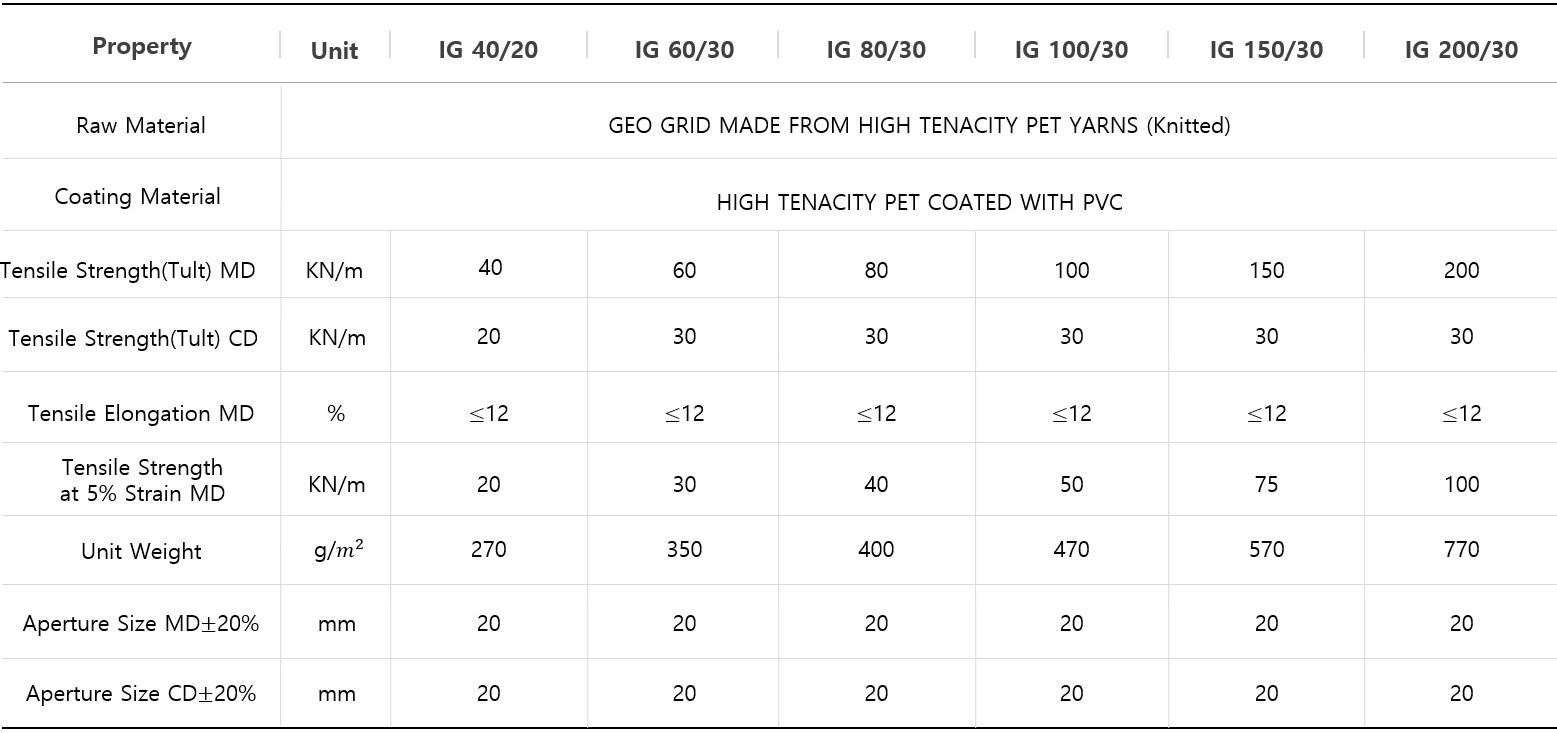

GRID Property Chart

Standard type GRID (ductile): Width of product-2M, 4M length-50M, 100M

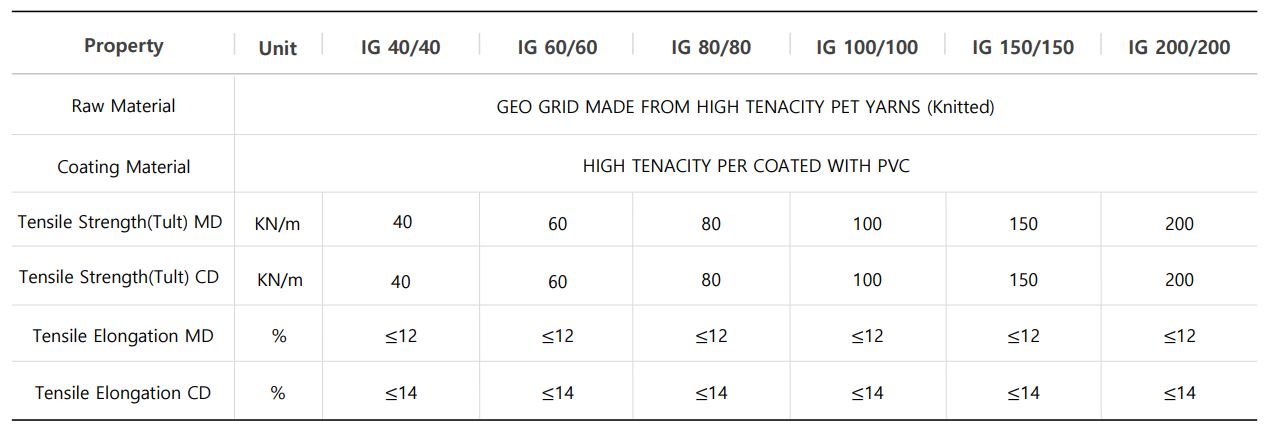

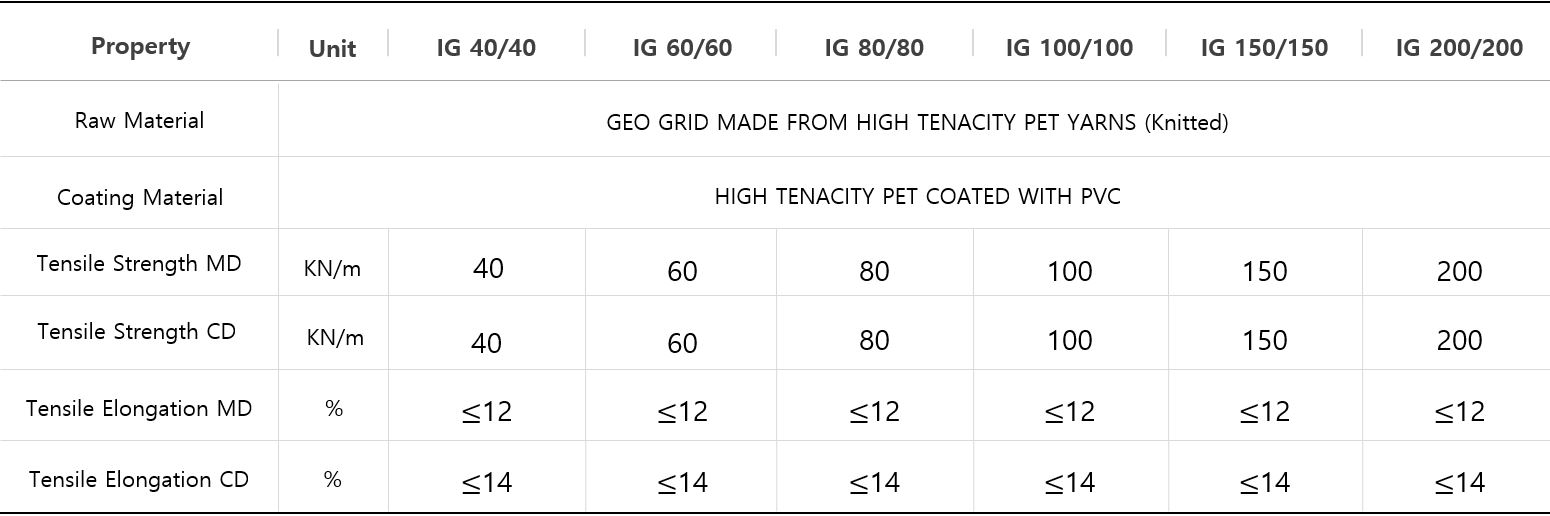

GRID Property Chart

Bidirectional type GRID (ductile): Width of product-2M, 4M length-50M, 100M

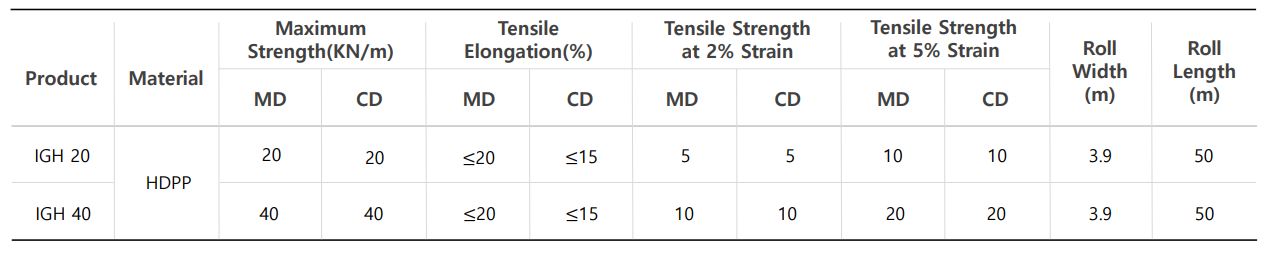

GRID Property Chart

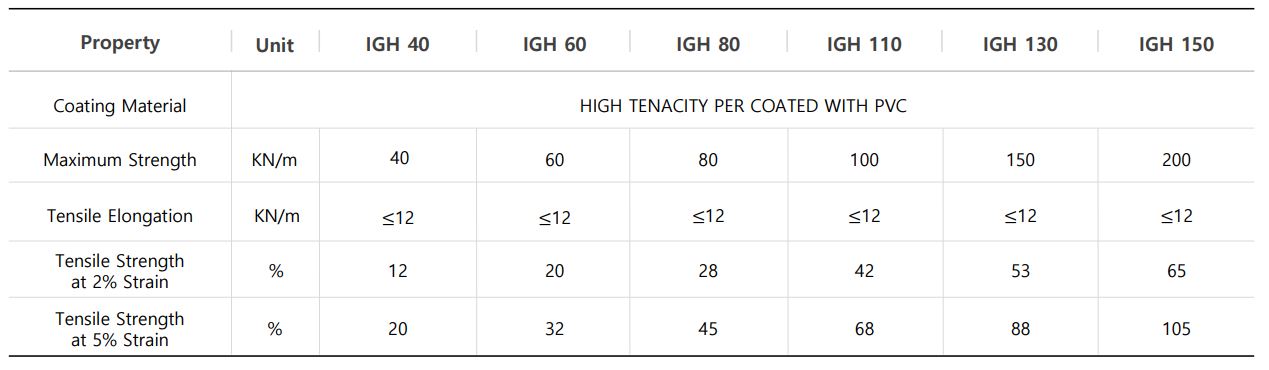

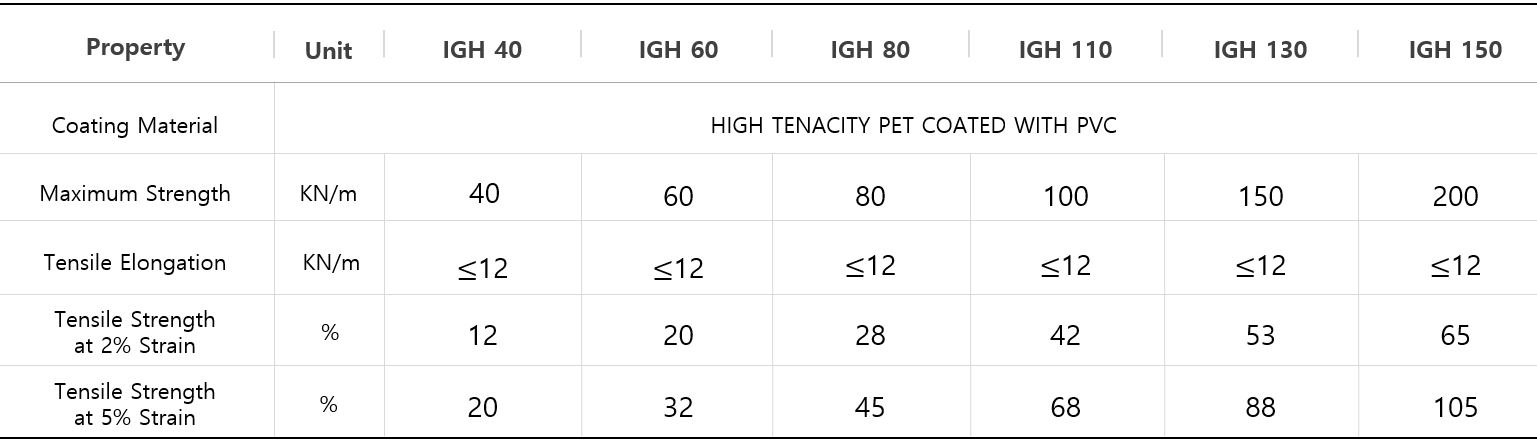

Normal GRID (Rigid)

Normal GRID (Rigid)

Normal GRID (Rigid)
